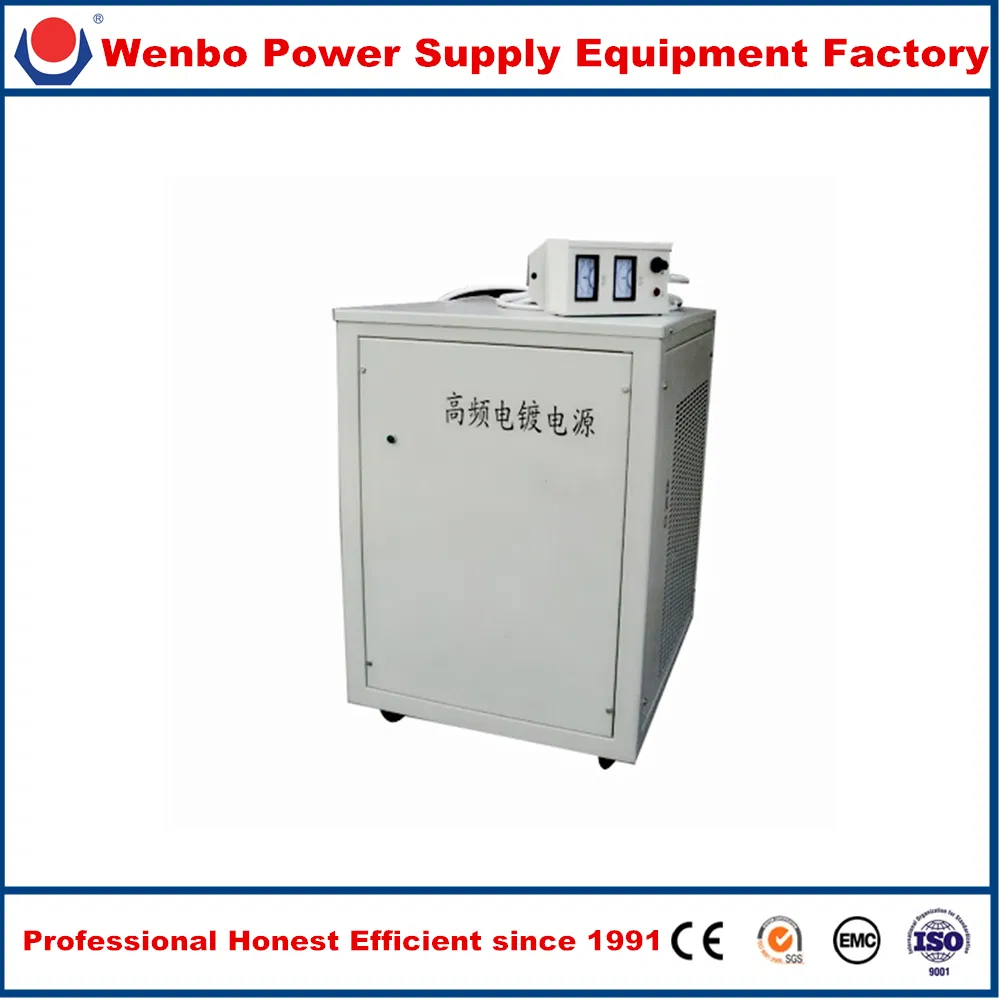

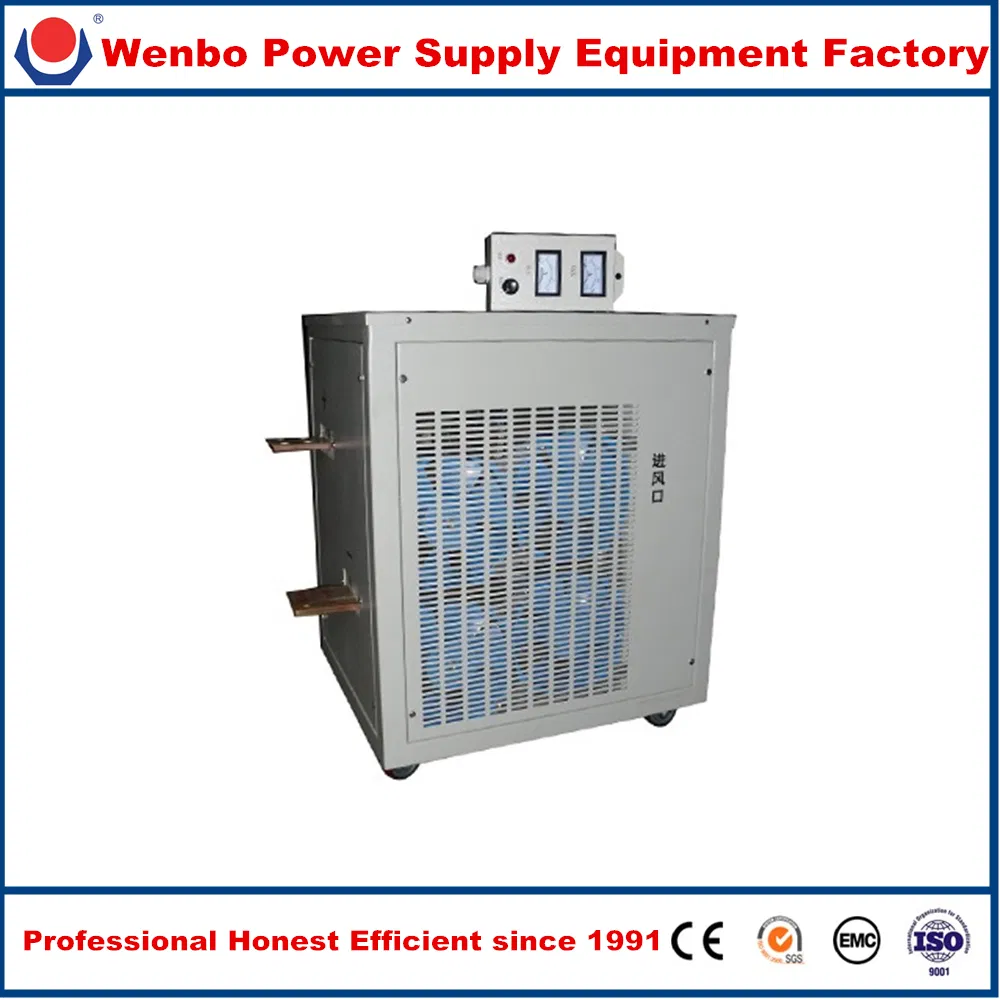

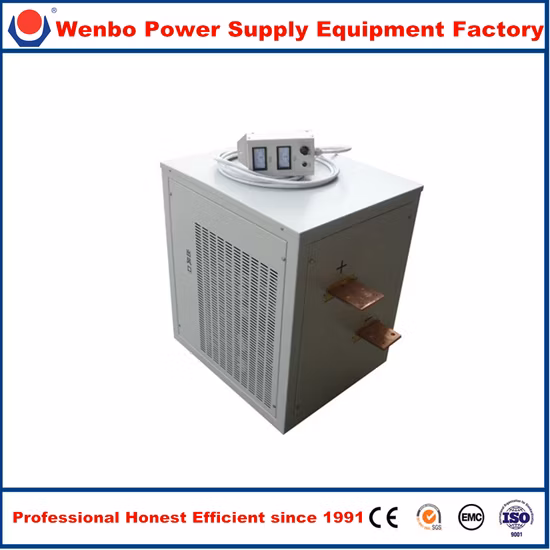

Anodizing Rectifier with IGBT Module

Basic Info

Model NO.	KGY-2000A-12V-6218
Output Type	Single
Warranty	2 Years
Output Power	>500W
Input Voltage	380V
Connection Mode	Parallel Switching Power Supply
Starting Mode	Self-excited Switching Power Supply
Voltage Regulating Mode	Frequency Modulation Type
Power Supplying System	Terminal Power Distribution Equipment
Energy Transmission	One-way Transmission
Modulation System	PWM
Certification	CE, RoHS, ISO, CCC, CB, FCC, SGS
Brand	Wenbo
Transport Package	Plywood Case
Specification	Customized
Trademark	Wenbo
Origin	Shandong China
HS Code	8504401990
Production Capacity	800 Sets/Month

Product Description

We are professional and creative manufacturer.Our reliable quality of rectifiers will definitely satisfy your requirements.

Product Description

high frequency electroplating rectifier
input voltage	3 phase 380VAC or other
output voltage	0-18v dc adjustable
output current	0-2000a adjustable
output power	36KW
Adjustment range	From 0-100%continuously adjustable voltage and current
Output conditioning method	Switching mode,PWM Pulse control
Machine efficiency	≥90%
Constant voltage control accuracy	Within 1.0%of rated output voltage
Constant current control accuracy	Within 1.0%of rated output current
Insulation resistance	5MΩ or more
Cooling system	Forced air cooling water cooled can be choosed
Operating temperature	-15-45ºC(overheating self-protect)
Ambient temperature	-30-65ºC
Relative humidity	30-85%
protection	Over heating,over current,over voltage,lack phase,over load,input over/low voltage
Control mode	6 meter cables Remote control box ,front panel control,PLC interface,touch screen can be OEM made

Buying Guides:
We are highly appreciate if you can provide the following details.
1. The productivity: xx per hour, xx hours per day.
2. Your application with the machine.
3. The power of your country,output &input voltage, output current, single phase/three phase?
4 .Air or water cooling model?
5.The shell is iron or PP?
6.See whether you need below optional functions or not?

Optional Function

Advantage:
1) Small, light and high efficiency
2) High frequency pulse current output
3) Flexible use, simple operation
4) Complete protection function
5)extra function:0-5v,4-20ma,0-10v,rs485,PLC interface,timer,ampere hour meter,slow
start,touch screen
Follow ISO 9001 quality standard,CE&SGS certificate

Product Application
Wenbo Rectifier is widely used in plating gold,silver,zinc,nickel,copper,chrome, anodizing,
electrolysis,Electrophoresis…and win high reputation among our customer. Several innovative
technologies obtain national patents and users worldwide.
