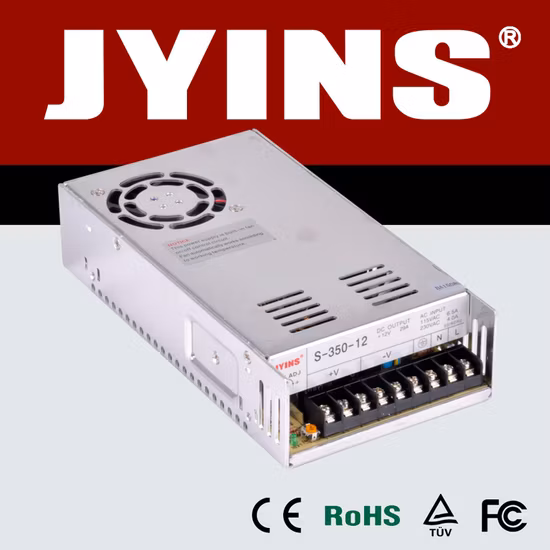

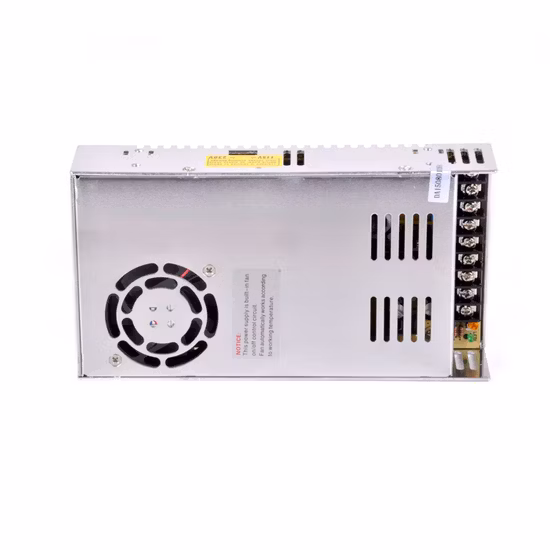

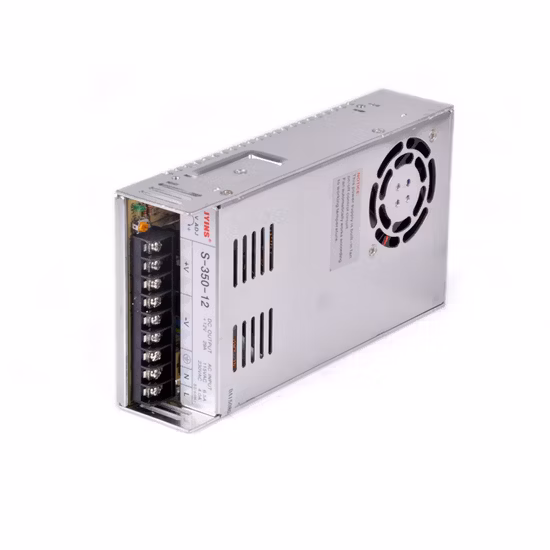

350W 110V/220V 24V 14.6A AC/DC Switching Power Supply 12V 29A

Basic Info

Model NO.	S-350W
Voltage Regulating Mode	Frequency Modulation Type
Power Supplying System	Level 1 Power Distribution Equipment
Energy Transmission	One-way Transmission
Modulation System	PFAW
Certification	CE, ISO
Brand	Jyins
OEM, ODM	Accepted
Power	350W
Type	Automatic Select
Color	Grey
Output Voltage	5V/12V/15V/24V
Transport Package	Standard Exporting Carton
Specification	IEC 521
Trademark	JYINS
Origin	China
HS Code	85044019
Production Capacity	50000PCS/Month

Product Description

S-350W Single AC DC Led Switching Mode Power Supply
Technical Parameters

Model	S-350-5	S-350-7.5	S-350-12	S-350-13.5	S-350-15	S-350-24	S-350-27	S-350-48
DC Output voltage	5V	7.5V	12V	13.5V	15V	24V	27V	48V
Output voltage range	±2%	±2%	±1%	1%	±1%	±1%	±1%	±1%
Rated output current	50A	40A	29A	25.8A	23.2A	14.6A	13A	7.3A
Wave and noise	75	75	75	75	75	75	75	75
Inlet stability	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%
Load stability	±1%	±1%	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%
DC output power	250W	300W	348W	348.3W	348W	350.4W	351W	350.4W
Efficiency	78%	78%	83%	83%	83%	84%	85%	86%
Adjustable range for DC voltage	4.5~5.6V	6~9V	10~13.2V	12~15V	13.5~18V	20~26.4V	26~32V	41~56V
AC input voltage range	85~132VAC/176~264VAC selected by switch 47~63Hz,248~370VDC
Input current	6.5A/115V 4A/230V

Product Description

WHY CHOOSE US

1. Our company is a professional manufacture and OEM.

2. Low price and high reliability
3.Hight efficiency and low operation temperature
4.Soft-start current can reduce the AC input impact effecticly
With Short-circuit and owwerload protection

5.100% full-load burning test
6.Our products obtain CE and ISO9001 Certificate and according to IEC 521
