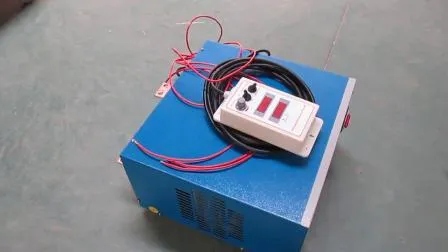

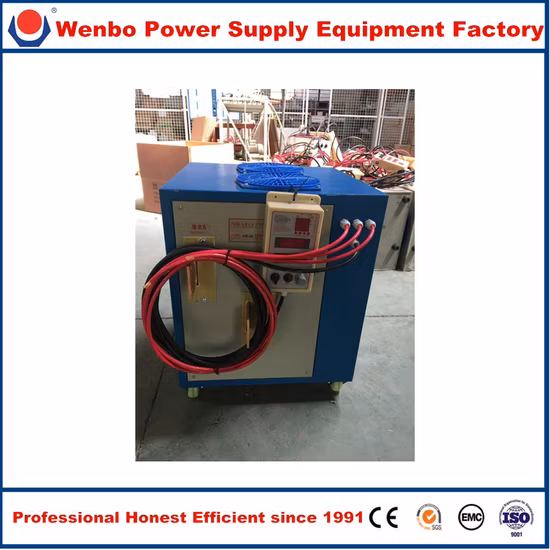

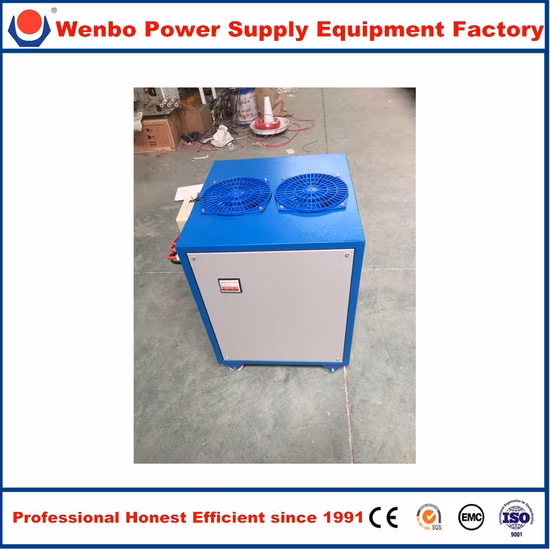

Electroplating Rectifier with IGBT Module 1000A 12V Plating Machine Equipment

Basic Info

Model NO.	KGY-1000A-12V-04132
Voltage Regulating Mode	Frequency Modulation Type
Power Supplying System	Terminal Power Distribution Equipment
Energy Transmission	One-way Transmission
Modulation System	PWM
Certification	CE, RoHS, ISO, CCC, CB, FCC, SGS
Brand	Wenbo
Type	High Frequency Switch Mode Rectifier
Application	Electroplating
Output Frequency	20kHz
Output Voltage	0-12V
Output Current	0-1000A
Certificate	Ce/SGS
Mode	Switching
Package	Plywood Case
Operation Environment	-15-45c
Operation Status	24 Hours at Full Load
Transport Package	Plywood Case/ Hard Carton Box
Specification	Customized
Trademark	Wenbo
Origin	Shandong China
HS Code	8504403090
Production Capacity	1100 Sets/Month

Product Description

We are professional and creative manufacturer.Our reliable quality of rectifiers will definitely satisfy your requirements.

Product Description

dc rectifier with 12V 1000A 300A
input voltage	3 phase 380vac±10%,50hz or 3 phase 220VAC,400V,415VAC,440VAC,480VAC,600VAC OEM
output voltage	0-12v dc adjustable
output current	0-1000a adjustable
Adjustment range	From 0-100%continuously adjustable voltage and current
Output conditioning method	Switching mode,PWM Pulse control
Machine efficiency	≥90%
Constant voltage control accuracy	Within 1.0%of rated output voltage
Constant current control accuracy	Within 1.0%of rated output current
Insulation resistance	5MΩ or more

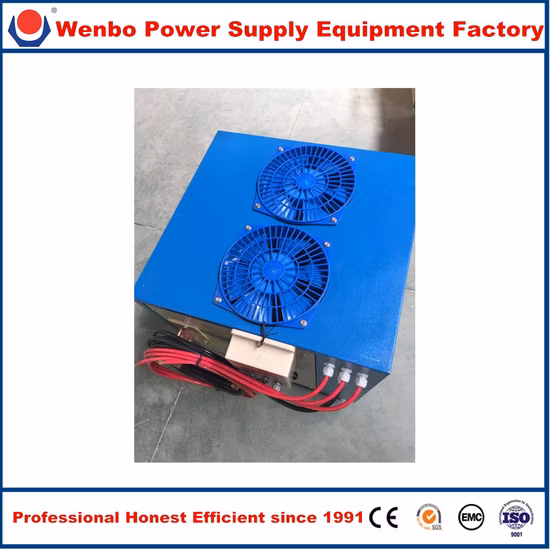

Cooling system	Forced air cooling water cooled can be choosed
Operating temperature	-15-45ºC(overheating self-protect)
Ambient temperature	-30-65ºC
Relative humidity	30-85%
protection	Over heating,over current,over voltage,lack phase,over load,input over/low voltage

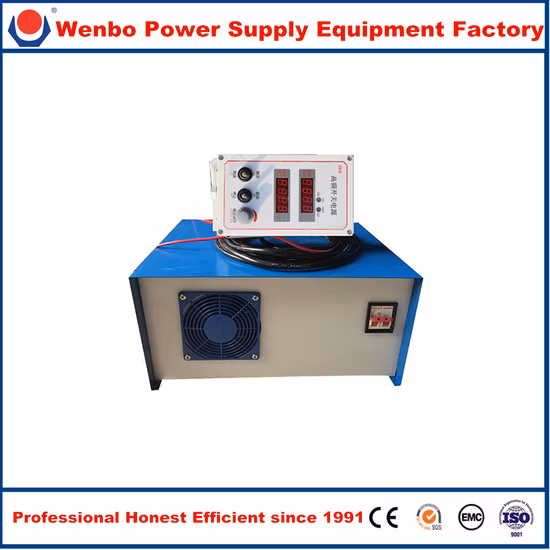

Control mode	6 meter cables Remote control box ,front panel control,PLC interface,touch screen can be OEM made

Buying Guides:
We are highly appreciate if you can provide the following details.
1. The productivity: xx per hour, xx hours per day.
2. Your application with the machine.
3. The power of your country,output &input voltage, output current, single phase/three phase?
4 .Air or water cooling model?
5.The shell is iron or PP?
6.See whether you need below optional functions or not?
Optional Function

Advantage:
1) Small, light and high efficiency
2) High frequency pulse current output
3) Flexible use, simple operation
4) Complete protection function
5)extra function:0-5v,4-20ma,0-10v,rs485,PLC interface,timer,ampere hour meter,slow
start,touch screen
Follow ISO 9001 quality standard,CE&SGS certificate

Product Application
Wenbo Rectifier is widely used in plating gold,silver,zinc,nickel,copper,chrome, anodizing,
electrolysis,Electrophoresis…and win high reputation among our customer. Several innovative
technologies obtain national patents and users worldwide.
